Product Details:
|
| Type: | Biomass Counterflow Pellet Cooler | Machine Condition: | New Machine |
|---|---|---|---|
| Machine Warranty: | 1 Year Warranty | Application: | Pellets Making Using |
| Color: | Gray Or Ohters | Power: | 380V Or As Demand |
| High Light: | 380V Biomass Pellet Cooler,2.5CBM Pellet Cooling Machine,4mm Biomass Pellet Cooler |
||
SKLN Wood Pellet Factory Using High Efficiency Biomass Counterflow Pellet Cooler
Introduction of biomass counterflow pellet cooler:
SKLN biomass counterflow pellet cooler is mainly using for cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after using the biomass counterflow pellet cooler, the temperature is not higher than room temperature +3-5.
The pellets biomass counterflow pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellets broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the biomass counterflow pellet cooler can cool fully and equally, pellet broken rate is smaller than 0.2%.
The SKLN biomass counterflow pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.
Mainly Parameter of biomass counterflow pellet cooler:
| Model | Power (kw) | Capacity (t/h) | Cooling time (min) | Cooling temperature(℃) | Dimension (mm) |
| SKLN-1.2 | 1.5+0.25 | 0.8-1 |
no less than 6-10 min |
No higher than room temperature +3-5℃ | 1750X1600X1960 |
| SKLN-1.5 | 1.5+0.25/1.5+1.5 | 1-2 | 1600X1800X2600 | ||
| SKLN-2.5 | 2.2+0.55/2.2+2.2 | 3-5 | 2000X2100X2200 | ||
| SKLN-4 | 3+0.37/2.2+3 | 5-8 | 2200X2200X3000 |

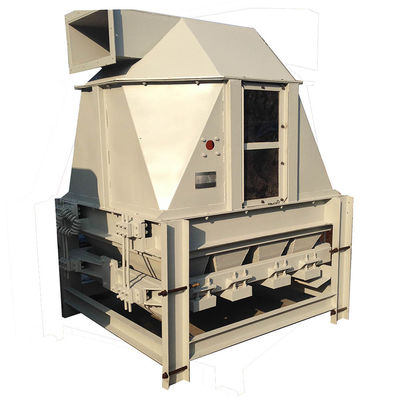

Product photos of biomass counterflow pellet cooler:
