• SKLN-4 Counterflow Pellet Cooler 3KW 4CBM Cooling Area Vertical Type
SKLN-4 Counterflow Pellet Cooler 3KW 4CBM Cooling Area Vertical Type

SKLN-4 Counterflow Pellet Cooler 3KW 4CBM Cooling Area Vertical Type

Product Details:

Place of Origin: SHANDONG, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: SKLN

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box, Steel frame box, bulk into container
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/ month
Get Best Price Contact Now

Detail Information

Type: Counter Flow Condition: New Machine
Warranty: 12 Month Application: Cooling The Pellets
Color: Yellow
High Light:

SKLN-4 Counterflow Pellet Cooler

,

4CBM pellet cooling machine

,

3KW Counterflow Pellet Cooler

Product Description

SKLN Vertical type counterflow biomass energy fuel pellet cooler



Introduction of fuel pellet cooler:



SKLN fuel pellet cooler is mainly to cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after cooling, the temperature is not higher than room temperature +3-5.



The fuel pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellet broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the SKLN fuel pellets cooler can cool fully and equally, pellet broken rate is smaller than 0.2%.



The SKLN fuel pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.



Mainly Parameter of fule pellets cooler:



Model Power (kw) Capacity (t/h) Cooling time (min) Cooling temperature(℃) Dimension (mm)
SKLN-1.2 1.5+0.25 0.8-1

no less than

6-10 min

No higher than room temperature +3-5℃ 1750X1600X1960
SKLN-1.5 1.5+0.25/1.5+1.5 1-2 1600X1800X2600
SKLN-2.5 2.2+0.55/2.2+2.2 3-5 2000X2100X2200
SKLN-4 3+0.37/2.2+3 5-8 2200X2200X3000

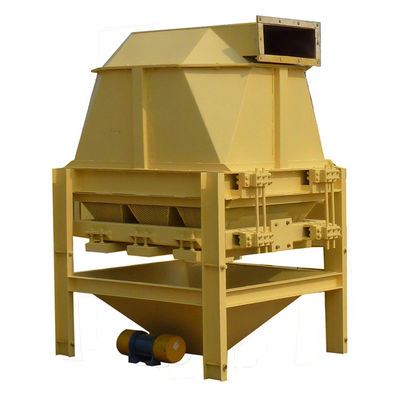

Product photos of fule pellets cooler:



SKLN-4 Counterflow Pellet Cooler 3KW 4CBM Cooling Area Vertical Type 0SKLN-4 Counterflow Pellet Cooler 3KW 4CBM Cooling Area Vertical Type 1SKLN-4 Counterflow Pellet Cooler 3KW 4CBM Cooling Area Vertical Type 2
