CE ISO Fuel Wood Pellet Cooler 8T/H Counterflow Cooling Machine
|Place of Origin:||SHANDONG, CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden box, Steel frame box, bulk into container|
|Delivery Time:||10-20 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50 sets/ month|
|Type:||Biomass Fuel Wood Pellet Cooler||Condition:||100% New|
|Warranty:||1 Year For Machine||Application:||Cooling Machine|
CE ISO Fuel Wood Pellet Cooler,
8T/H Counterflow Cooling Machine,
8T/H Wood Pellet Cooler
SKLN Industry Using Counterflow Biomass Fuel Wood Pellet Cooler
Introduction of wood pellet cooler:
SKLN counter flow wood pellet cooler is mainly using for cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after using the counter flow type wood pellet cooler, the temperature is not higher than room temperature +3-5.
The biomass fuel wood pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellets broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the SKLN counter flow biomass fule wood pellet cooler can cool fully and equally, pellet broken rate is smaller than 0.2%.
The SKLN biomass fuel wood pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.
Mainly Parameter of wood pellet cooler:
|Model||Power (kw)||Capacity (t/h)||Cooling time (min)||Cooling temperature(℃)||Dimension (mm)|
no less than
|No higher than room temperature +3-5℃||1750X1600X1960|

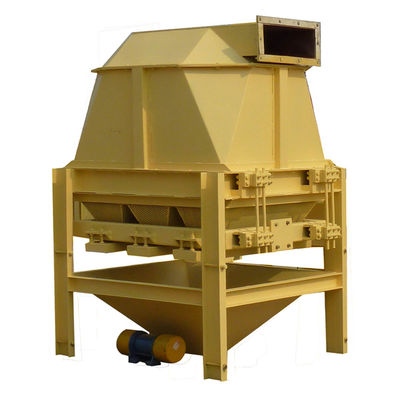

Product photos of wood pellet cooler:
