SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling

SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling
SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling

Large Image :  SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: SKLN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box, Steel frame box, bulk into container
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/ month

SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling

Description
Type: Feel Pellets Cooling Machine Machine Condition: 100% New Produced Machine
Machine Warranty: 13 Months For Machine Application: Feed Pellets Making
Color: Gray Or OEM Power: 380V Or 415V
High Light:

8mm Animal Feed Pellet Cooling Machine

,

SKLN counter flow cooler

,

8mm counter flow cooler

SKLN Factory Using High Efficiency Animal Feed Pellets Cooling Machine



Introduction of feed pellets cooling machine:



SKLN feed pellets cooling machine is mainly using for cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after using the feed pellets cooling machine, the temperature is not higher than room temperature +3-5.



The feed pellets cooling machine adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellets broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the feed pellets cooling machine can cool fully and equally, pellet broken rate is smaller than 0.2%.



The SKLN feed pellets cooling machine generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.



Mainly Parameter of feed pellets cooling machine:



Model Power (kw) Capacity (t/h) Cooling time (min) Cooling temperature(℃) Dimension (mm)
SKLN-1.2 1.5+0.25 0.8-1

no less than

6-10 min

No higher than room temperature +3-5℃ 1750X1600X1960
SKLN-1.5 1.5+0.25/1.5+1.5 1-2 1600X1800X2600
SKLN-2.5 2.2+0.55/2.2+2.2 3-5 2000X2100X2200
SKLN-4 3+0.37/2.2+3 5-8 2200X2200X3000

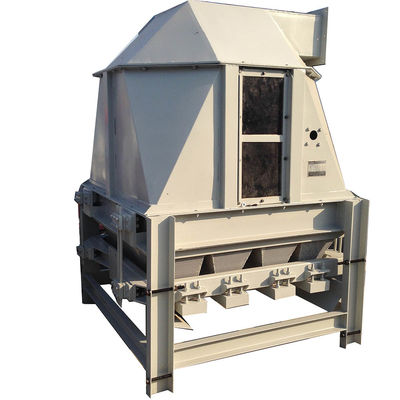

Product photos of feed pellets cooling machine:



SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling 0SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling 1SKLN 8mm Animal Feed Pellet Cooling Machine Counter Flow Cooling 2
