Product Details:
|
| Type: | Pellet Cooling System | Machine Condition: | 100% New Machine |
|---|---|---|---|
| Machine Warranty: | Warrant 13 Months | Application: | Energy / Feed Pellets Making |
| Color: | OEM / Customized | Power: | 380V Or 415V Or Others |
| High Light: | 2mm Pellet Cooling System,1T/H Pellet Cooling System,1T/H pellet mill cooler |
||
SKLN Factory Using High Efficiency Biomas Fuel Energy Pellet Cooling System
Introduction of pellet cooling system:
SKLN pellet cooling system is mainly using for cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after using the pellet cooling system, the temperature is not higher than room temperature +3-5.
The pellet cooling system adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellets broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the pellet cooling system can cool fully and equally, pellet broken rate is smaller than 0.2%.

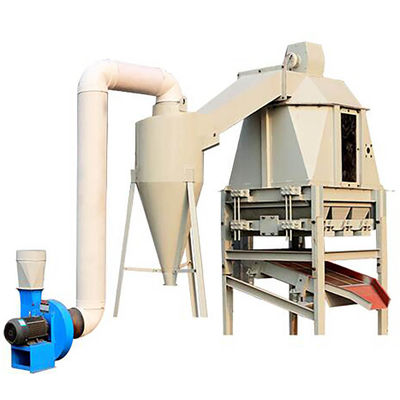

The SKLN pellet cooling system generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.
Mainly Parameter of pellet cooling system:
| Model | Power (kw) | Capacity (t/h) | Cooling time (min) | Cooling temperature(℃) | Dimension (mm) |
| SKLN-1.2 | 1.5+0.25 | 0.8-1 |
no less than 6-10 min |
No higher than room temperature +3-5℃ | 1750X1600X1960 |
| SKLN-1.5 | 1.5+0.25/1.5+1.5 | 1-2 | 1600X1800X2600 | ||
| SKLN-2.5 | 2.2+0.55/2.2+2.2 | 3-5 | 2000X2100X2200 | ||
| SKLN-4 | 3+0.37/2.2+3 | 5-8 | 2200X2200X3000 |

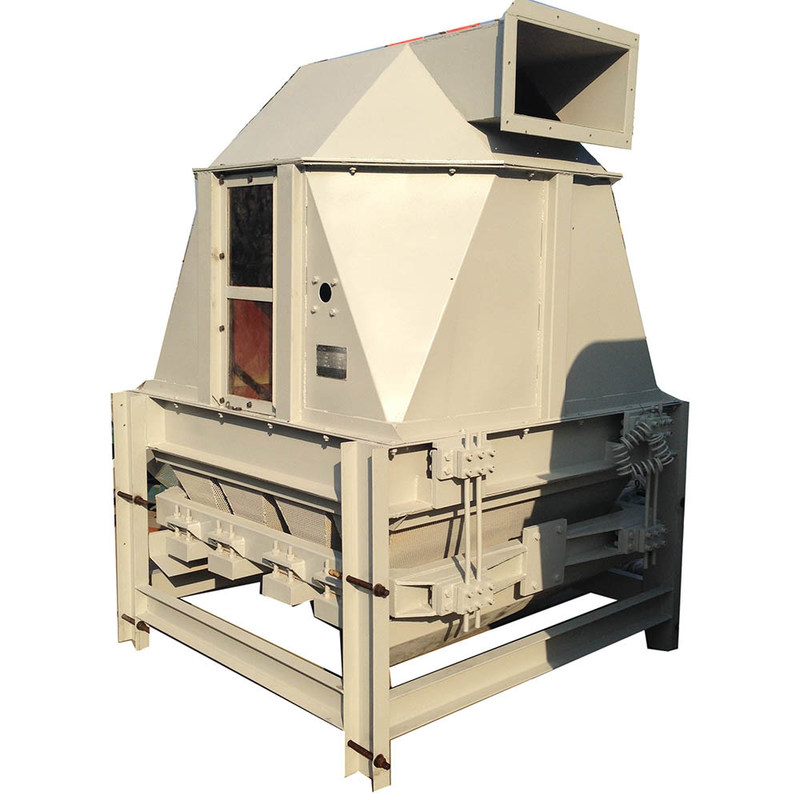

Product photos of pellet cooling system:
