Product Details:

Place of Origin: SHANDONG, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: SKLN

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box, Steel frame box, bulk into container
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/ month
Get Best Price Contact Now

Detail Information

Type: Counterflow Cooler Machine Condition: New
Machine Warranty: 1 Year Application: Pellets Factory Using
Color: Based On Customer Demand Power: 380V 50HZ, 3 Phase
High Light:

6 min Counterflow Cooler

,

3T/H Pellet Cooling System

,

3T/H Counterflow Cooler

Product Description

SKLN Wood Pellet Making Factory Using High Efficiency Counterflow Cooler



Introduction of pellet counterflow cooler:



SKLN pellets counterflow cooler is mainly using for cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after using the pellets counterflow cooler, the temperature is not higher than room temperature +3-5.



The pellets counterflow cooler adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellets broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the pellets counterflow cooler can cool fully and equally, pellet broken rate is smaller than 0.2%.



The SKLN pellets counterflow cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.



Mainly Parameter of pellet counterflow cooler:



Model Power (kw) Capacity (t/h) Cooling time (min) Cooling temperature(℃) Dimension (mm)
SKLN-1.2 1.5+0.25 0.8-1

no less than

6-10 min

No higher than room temperature +3-5℃ 1750X1600X1960
SKLN-1.5 1.5+0.25/1.5+1.5 1-2 1600X1800X2600
SKLN-2.5 2.2+0.55/2.2+2.2 3-5 2000X2100X2200
SKLN-4 3+0.37/2.2+3 5-8 2200X2200X3000

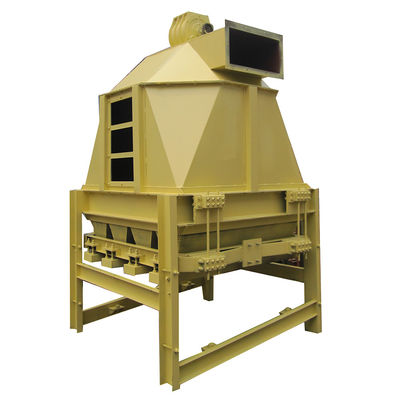

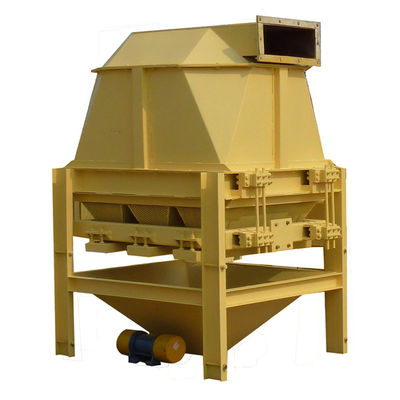

Product photos of pellet counterflow cooler:



6 Min Counterflow Cooler 3 Phase 3T/h Pellet Cooling System 06 Min Counterflow Cooler 3 Phase 3T/h Pellet Cooling System 16 Min Counterflow Cooler 3 Phase 3T/h Pellet Cooling System 2
