Yellow 2.2KW Counter Flow Pellet Cooler 3-5T/H Pellet Mill Cooler
|Place of Origin:||SHANDONG, CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden box, Steel frame box, bulk into container|
|Delivery Time:||10-20 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50 sets/ month|
|Type:||Counter Flow Pellet Cooler||Condition:||New Machine From Factory|
|Warranty:||12 Month||Application:||Cooling Hot Pellets|
|Color:||Yellow Or Gray|
2.2KW Counter Flow Pellet Cooler,
5T/H Counter Flow Pellet Cooler,
5T/H Pellet Mill Cooler
SKLN Industry Using Pellets Cooling Using Counter Flow Pellet Cooler
Introduction of counter flow pellet cooler:
SKLN counter flow pellet cooler is mainly to cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after cooling, the temperature is not higher than room temperature +3-5.
The counter flow pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom and then go out from top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellets broken, if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface broken easily. So the SKLN counter flow pellet cooler can cool fully and equally, pellet broken rate is smaller than 0.2%.
The SKLN counter flow pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.
Mainly Parameter of counter flow pellet cooler:
|Model||Power (kw)||Capacity (t/h)||Cooling time (min)||Cooling temperature(℃)||Dimension (mm)|
no less than
|No higher than room temperature +3-5℃||1750X1600X1960|

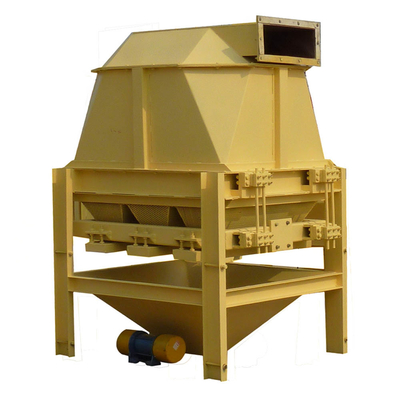

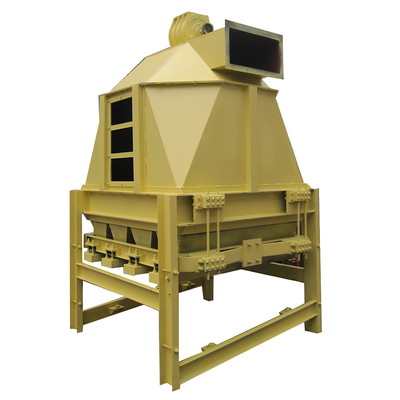

Product photos of counter flow pellet cooler:
