DEXI Vertical 6mm 8mm Pellet Cooler For Biomass Pellet Line
Product Details:
Place of Origin: | SHANDONG, CHINA |
Brand Name: | DEXI |
Certification: | CE ISO |
Model Number: | SKLN |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden box, Steel frame box, bulk into container |
Delivery Time: | 10-20 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets/ month |
Detail Information |
|||
Type: | Counterflow | Condition: | New |
---|---|---|---|
Warranty: | 1 Year | Application: | Feed Or Wood Pellet Cooling |
High Light: | DEXI Vertical Pellet Cooler,6mm 8mm Pellet Cooler,6mm 8mm counter flow cooler |
Product Description
Product Introduction:
SKLN pellet cooler is mainly to cooling 2-8mm diameter pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after cooling, the temperature is not higher than room temperature +3-5.
Pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom to top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellet broken , if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface. In this way can cool fully and equally, pellet broken rate is smaller than 0.2%.
The SKLN pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.
Mainly Parameter:
Model | Power (kw) | Capacity (t/h) | Cooling time (min) | Cooling temperature(℃) | Dimension (mm) |
SKLN-1.2 | 1.5+0.25 | 0.8-1 |
no less than 6-10 min |
No higher than room temperature +3-5℃ | 1750X1600X1960 |
SKLN-1.5 | 1.5+0.25/1.5+1.5 | 1-2 | 1600X1800X2600 | ||
SKLN-2.5 | 2.2+0.55/2.2+2.2 | 3-5 | 2000X2100X2200 | ||
SKLN-4 | 3+0.37/2.2+3 | 5-8 | 2200X2200X3000 |

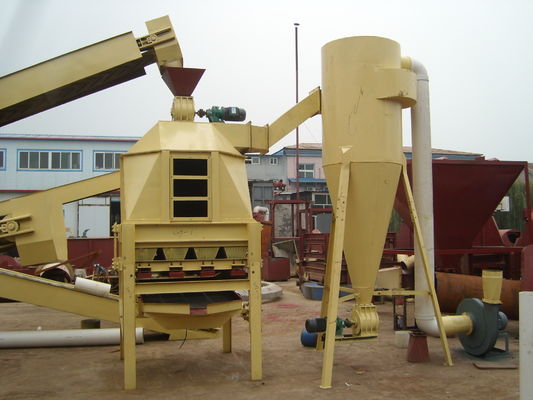

Product photos:
