Product Details:
|
| Name: | Wood Pellet Mill | Power: | 45 Kw Electric Motor |
|---|---|---|---|
| Capacity: | 500-800KG | Suitable Materials: | Wood Sawdust |
| Die: | 450 Mm Diamter | Roller: | 3 Rollers |
| Output Pellets: | 6mm Or 8 MM | ||
| High Light: | SKJ450 Biomass Wood Pellet Mill,45KW Biomass Wood Pellet Mill,45KW flat die pellet mill |
||
SKJ450 45KW Flat Die Type Sawdust Biomass Wood Pellet Mill
Introduction of Biomass wood pellet mill
The flat die wood pellet mill is good ideal machine for farm using or testing using, It is good at press different kind of wood sawust, grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets.
SKJ flat die wood pellet mill using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally.
Flat die biomass wood pellet mill motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using,
Mainly Parameter of Biomass wood pellet mill:
| Model |
Power (kw) |
Capacity for pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |
| SKJ300 | 22 | 200-300 | 700 | 1280×560×1220 |
| SKJ350 | 30 | 300-400 | 800 | 1300×620×1300 |
| SKJ450 | 45 | 500-700 | 1500 | 1620×700×1600 |
| SKJ550 | 55 | 700-900 | 1600 | 1700×700×1600 |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |

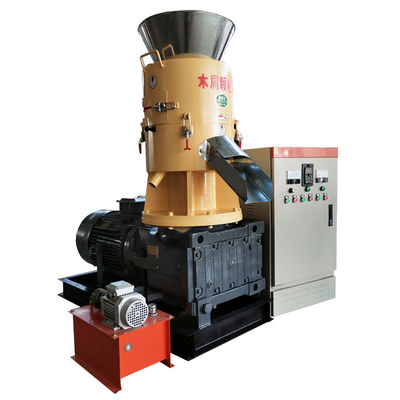

Photos of the wood pellet mill:
The spare parts for the Biomass fuel pellet machine:
