SKJ350 30KW Wood Sawdust Biomass Fuel Pellet Machine Flat Die Type
Product Details:
| Place of Origin: | SHANDONG, CHINA |
| Brand Name: | DEXI |
| Certification: | CE ISO |
| Model Number: | SKJ250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Wooden box, Steel frame box, bulk into container |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/ month |
|
Detail Information |
|||
| Name: | Biomass Fuel Pellet Machine | Power: | 30 Kw Electric Motor |
|---|---|---|---|
| Capacity: | 300-400KG | Suitable Materials: | Biomass Sawdust |
| Die: | 3500 Mm Diamter | Roller: | 2 Rollers |
| Output Pellets: | 6 Or 8 MM | ||
| High Light: | 30KW Biomass Fuel Pellet Machine,SKJ350 Biomass Fuel Pellet Machine,30KW sawdust pellet machine |
||
Product Description
Flat Die Type Wood Sawdust Biomass Fuel Pellet Machine
Introduction of Biomass fuel pellet machine
The flat die biomass fule pellet machine is good ideal machine for farm using or testing using, It is good at press different kind of wood sawust, grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets.
SKJ flat die biomass fuel pellet machine using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally.
Flat die biomass fuel pellet machine motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using,
Mainly Parameter of Biomass fuel pellet machine:
| Model |
Power (kw) |
Capacity for pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |
| SKJ300 | 22 | 200-300 | 700 | 1280×560×1220 |
| SKJ350 | 30 | 300-400 | 800 | 1300×620×1300 |
| SKJ450 | 45 | 500-700 | 1500 | 1620×700×1600 |
| SKJ550 | 55 | 700-900 | 1600 | 1700×700×1600 |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |

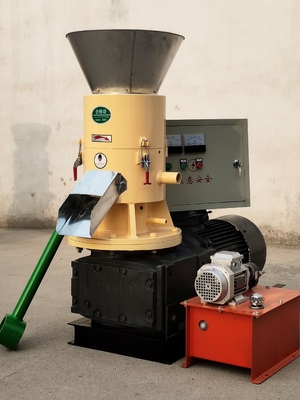

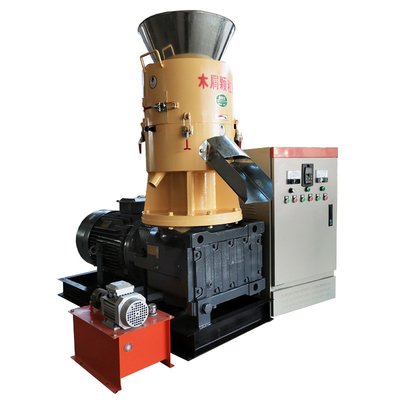

Photos of the Biomass fuel pellet machine:
The spare parts for the Biomass fuel pellet machine:
