132KW Vertical Pellet Mill 2 Ton/H Wood Sawdust / Crop Straw Pellet Produce
Product Details:
| Place of Origin: | Shangdong, CHINA |
| Brand Name: | DEXI |
| Certification: | CE ISO |
| Model Number: | XGJ560P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiated |
| Packaging Details: | wooden box / iron sheet box / bulk into container |
| Delivery Time: | 10-20 Working days |
| Supply Ability: | 50 SETS / MONTH |
|
Detail Information |
|||
| Name: | Vertical Pellet Mill | Power: | 132 For Main Motor |
|---|---|---|---|
| Ring Die: | Stainess Steel Ring Die | Roller: | Alloy Rollers |
| Machine Gurantee: | 3 Years Of Gearbox | Power Standard: | 380V/ 415V/ 440V |
| After-sales Service Provided: | Guide Installation/ Install At Site | Condition: | New Machine 100% |
| Application: | Biomass Pellet Produce | Pellet Size: | Φ6mm, Φ8mm, Φ10mm |
| Pellets Density: | 1.0-1.4 G/cm3 | ||
| High Light: | 132KW Vertical Pellet Mill,2 Ton/H Vertical Pellet Mill,2 Ton/H wood sawdust pellet machine |
||
Product Description
132KW Vertical Pellet Mill 2 Ton/H Wood Sawdust /Crop Straw Pellet Produce
Introduction for vertical pellet mill:
The vertical pellet mill with vertical ring die structurer, the inner ring die verticall installed on the machine, ring die with double layers, in this condition one ring die can using 2 times, cut down the running cost for biomas wood pellets making.
This XGJ vertical pellet mill has 2 big rollers set on the mainly hollow shaft, make the roller rotary againsed the innerside of ring die inside, so big part ring die fixed on machine, only rollers rotary, make the wood pellet mill working more stable.
In order to keep the vertical pellet mill long time continually no stop working, the machine equipped with automatically grease pump, it will inject the grease to 2 rollers and the main shaft regularly and automatically.
The vertical pellet mill mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, soft wood sawdust, rice husk, sunflower husk, peanut shell and coffe husk, or other fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks, and other biomass materials.
Mainly Parameters for vertical pelletizer :
| Model |
Power (kw) |
Capacity for wood pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |

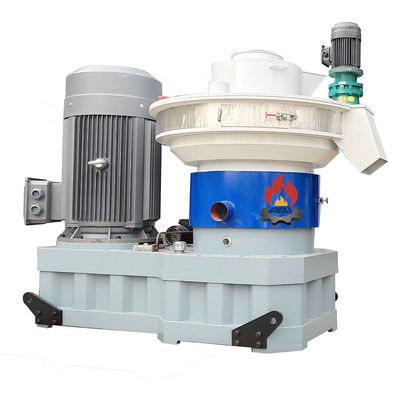

Photos of vertical pellet mill:
Sucessful Case for biomass pelletizer:
We have installed many complete biomass fuel pellet mill line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the pellet mill machine.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.
Want to Know more details about this product
