Product Details:
|
| Type: | Pellet Production Machine | Power: | 90+1.5 Kw |
|---|---|---|---|
| Ring Die: | Double Layer Ring Die | Roller: | Auto-lubricated |
| Machine Gurantee: | 1 Year | Power Standard: | 380V Or 415V Or Others |
| After-sales Service Provided: | Engineers Guide Installation | Condition: | New Machines |
| Application: | Biomass Materials Press | Color: | Green, Yellow, Gray |
| Pellet Size: | 4-10mm | ||
| High Light: | 90KW Biomass Pellet Making Machine,XGJ560 industrial pellet mill,XGJ560 Biomass Pellet Making Machine |
||

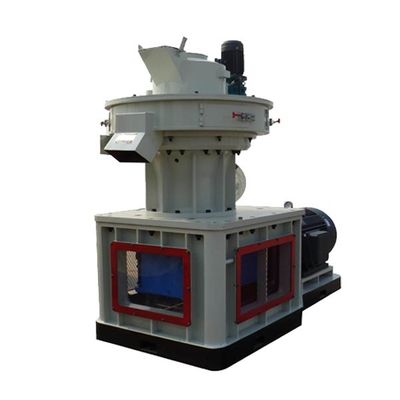

XGJ560 90KW Auto-Lubrication Industry Using Biomass Pellet Production Machine
This mchine with vertical double layer ring die structurer, ring die made of stainless steel or alloy steel, ring die verticall installed on the biomass pellet mill, with 2 layers, one ring die can using 2 times, saving the running cost for the straw pellet press machine, and ring die is vised no rotary, only inner rollers is rotating, this structure make the machine working stable, more suitable for biomass pellet making.
This 90KW pellet production machine have 2 pcs Big rollers rotary againsed the innerside of ring die inside, so big part ring die fixed on machine, only rollers rotary, make the wood pellet machine working more stable, roller shell after heat treatment, long lifetime, good for biomass pellet making.
XGJ560 pellet prduction machine with automatical lubircating system, can lubricating the main shaft bearing and the roller bearing automatically. can make the machine no stop continually working, low maintenance ratio, running cost for pellet making is low.
This vertical type ring die pellet production machine is good for press difficult molding materials with low adhesion rate, for example, hard wood sawdust, soft wood sawdust, rice husk, paddy straw, sunflower husk, peanut shell and coffe husk, or other fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks, and other biomass materials.
Mainly Parameters for pellet production machine:
| Model |
Power (kw) |
Capacity for wood pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |
Photos of biomass pellet production machine:
Sucessful Case for straw pellet press machine customers:
We have installed many complete biomass pellet mill line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the biomass pellet mill.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about our biomass pellet mill and our company.
