Product Details:
|
| Type: | Double Layer Ring Die | Power: | Main Motor 132kw |
|---|---|---|---|
| Ring Die: | Double Layer | Roller: | 2 Roller On The Main Shaft |
| Machine Gurantee: | Gearbox 3 Years | Power Standard: | 380V, 50hz, 3 Phase Or Customize |
| After-sales Service Provided: | Engineers Available For Overseas | Condition: | New Machines |
| Application: | Biofuel Pellets Produce | Color: | Customers' Demand |
| Pellet Size: | 6mm, Or 8 Mm | ||
| High Light: | 2T/H Wood Pellet Machine,132KW Wood Pellet Machine,132KW sawdust pellet machine |
||
XGJ560P 2T/H Capacity 132KW Ring Die Biomass Pellet Mill
Vertical ring die structurer, the inner ring die verticall installed on the biomass pellet mill, with 2 layers, one ring die can using 2 times, saving the running cost for the wood pellet mill.
XGJ Biomass pellet mill have 2 pcs Big rollers rotary againsed the innerside of ring die inside, so big part ring die fixed on machine, only rollers rotary, make the wood pellet machine working more stable, and continually no stop working.
This biomass pellet mill mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, soft wood sawdust, rice husk, sunflower husk, peanut shell and coffe husk, or other fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks, and other biomass materials.
Mainly Parameters for biomass pellet mill:
| Model |
Power (kw) |
Capacity for wood pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |

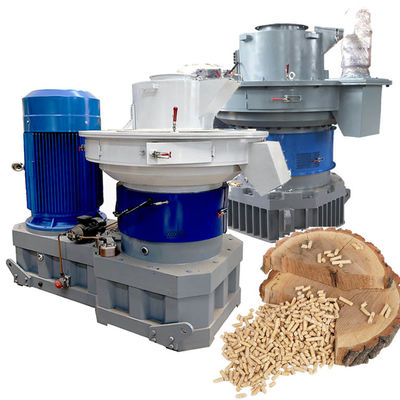

Photos of biomass pellet mill:
Sucessful Case for biomass pellet mill customers:
We have installed many complete biomass pellet mill line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the biomass pellet mill.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about our biomass pellet mill and our company.
