Product Details:
|
Key Words: | Organic Fertilizer Pellet Machine | Power: | 45/ 55 Kw |
---|---|---|---|
Capacity: | 1000-2000 Kg | Suitable Materials: | Poultry Waste |
Type: | Flat Die Type | Die Diamter: | 450 / 550 Mm |
Roller: | 3 Rollers | Pellets Diameter: | 4 - 8 Mm |
Color: | Gray / Blue | ||
High Light: | organic fertilizer pellet machine,organic fertilizer granule making machine,granular fertilizer making machine |
55KW Flat Die Organic Fertilizer Pellet Machine For Animal Waste Process
Introduction of organic fertilizer pellet machine
The organic fertilizer pellet machine is good for press different kind of materials into pellets, it is mainly suing for straw feed pellet making, organic fertilizer pellet making, small capacity wood pellet making.
The organic fertilizer pellet machine can produce different diameter size of pellets from diameter 2mm to 10mm, by change the flat die of the machine, other parts no need change. The output pellets with columnar shape, and if you want to making ball like pellets, we can provide the ball shaper machine to connecting with the flat die pellet machine. Which can process the columnar shape pellets into small ball type pellets.
The organic fertilizer pellet machine working, power is transmitted to the main shaft by the transmission mechanism, and the main shaft drives the roller to rotate; the material rotates with the roller and is forced to be squeezed between the die and the roller, the continuous pressing force of the roller on the material is formed; under the above action mechanism, the material is continuously pressed into the die hole, and finally extruded from the die hole to form columnar shape pellets.
The organic fertilizer pellet machine can press different kind of animal waste into organic fertilizer, such as chicken dung, cow dung, sheep dung, and other animal waste...
Mainly Parameter of organic fertilizer pellet machine
Model |
Capacity (kg/h) |
Power (kw) |
Specification (mm) |
Weight (T) |
Size (mm) |
SKJ2-250 | 300-500 | 15 | 4-6 | 0.5 | 1400x 600x 1000 |
SKJ2-280 | 400-700 | 22 | 4-6 | 0.65 | 1760x 670x 1600 |
SKJ2-300 | 500-800 | 30 | 4-8 | 0.76 | 1860x 670x 1600 |
SKJ2-350 | 600-1000 | 37 | 4-8 | 1.2 | 1800x 800x 1700 |
SKJ2-450 | 800-1200 | 45 | 4-8 | 1.8 | 1800x 850x 1750 |
SKJ3-350 | 600-1200 | 37 | 4-8 | 2.2 | 1900x 850x 1750 |
SKJ3-450 | 800-1500 | 55 | 4-8 | 4.3 | 2300x 1100x 1900 |
SKJ3-550 | 1000-2000 | 75 | 4-8 | 5.5 | 2350x 1100x 2050 |
SKJ3-550 | 2500-3500 | 90 | 4-8 | 5.5 | 2350x 1100x 2050 |

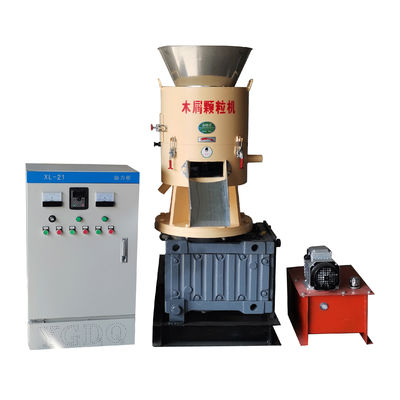

Photos of the organic fertilizer pellet machine:
The photos of pellets from organic fertilizer pellet machine:
