|Key Words:||Fertilizer Making Machine||Power:||55 Kw|
|Capacity:||2000kg||Suitable Materials:||Animal Manure|
|Type:||Flat Die Machine||Die Diamter:||450mm|
|Roller:||3 Rollers||Pellets:||Daimter 4 - 8 Mm|
|Color:||Gray Or Others|
Fertilizer Making Machine,
fertilizer granule making machine,
organic fertilizer pellet machine
Farm Using Flat Die Type 45KW Fertilizer Making Machine CE Approved
Introduction of Fertilizer making machine
The flat die type fertilizer making machine is good for press different kind of materials into pellets, it is mainly suing for straw feed pellet making, organic fertilizer pellet making, small capacity wood pellet making.
The flat die fertilizer making machine working, power is transmitted to the main shaft by the transmission mechanism, and the main shaft drives the roller to rotate; the material rotates with the roller and is forced to be squeezed between the die and the roller, the continuous pressing force of the roller on the material is formed; under the above action mechanism, the material is continuously pressed into the die hole, and finally extruded from the die hole to form columnar shape pellets.
The organic fertilizer making machine can produce different diameter size of pellets from diameter 2mm to 10mm, by change the flat die of the machine, other parts no need change. The output pellets with columnar shape, and if you want to making ball like pellets, we can provide the ball shaper machine to connecting with the flat die pellet machine. Which can process the columnar shape pellets into small ball type pellets.
The flat die fertilizer making machine can press different kind of animal waste into organic fertilizer, such as chicken dung, cow dung, sheep dung, and other animal waste...
Mainly Parameter of Fertilizer making machine
|SKJ2-250||300-500||15||4-6||0.5||1400x 600x 1000|
|SKJ2-280||400-700||22||4-6||0.65||1760x 670x 1600|
|SKJ2-300||500-800||30||4-8||0.76||1860x 670x 1600|
|SKJ2-350||600-1000||37||4-8||1.2||1800x 800x 1700|
|SKJ2-450||800-1200||45||4-8||1.8||1800x 850x 1750|
|SKJ3-350||600-1200||37||4-8||2.2||1900x 850x 1750|
|SKJ3-450||800-1500||55||4-8||4.3||2300x 1100x 1900|
|SKJ3-550||1000-2000||75||4-8||5.5||2350x 1100x 2050|
|SKJ3-550||2500-3500||90||4-8||5.5||2350x 1100x 2050|

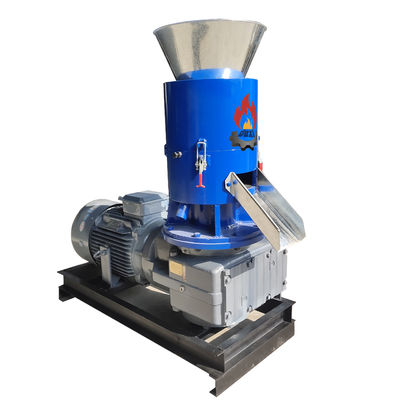

Photos of the Fertilizer making machine:
The photos of pellets from fertilizer making machine:
