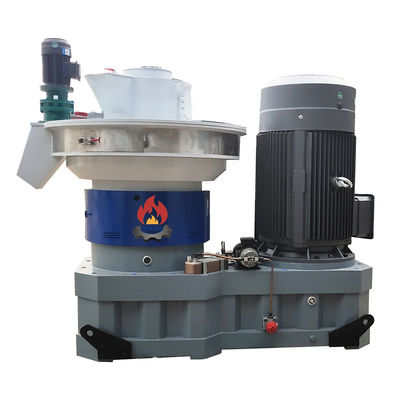

1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust

1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust
1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust
1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust

Large Image :  1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust

Product Details:
Place of Origin: Shangdong, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: XGJ560P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: wooden box / iron sheet box / bulk into container
Delivery Time: 10-20 Working days
Supply Ability: 50 SETS / MONTH
Contact Now

1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust

Description
Type: 2 Layer Ring Die Power: 132+1.5+0.55KW
Ring Die: Double Layers Roller: Alloy Steel
Machine Gurantee: Gearbox 3 Years Long Lifetime Power Standard: 3 Phase Electricity
After-sales Service Provided: Engineers Available / Guide Installation Condition: New Machines
Application: Sawdust Pellet Making Color: Gray Or Blue Or Customize
Pellet Size: 8mm
Highlight:

2 Ton/Hour Biofuel Pellet Machine

,

Ring Die Biofuel Pellet Machine

,

1.5 Ton/Hour sawdust pellet mill

1.5-2Ton/Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust


Introduction for biofuel pellet machine:

This wood sawdust biofuel pellet machine with vertical ring die structurer, the inner ring die verticall installed on the machine, ring die with double layers, in this condition one ring die can using 2 times, cut down the running cost for biofuel pellets making.

The biofuel pellet machine has 2 big rollers set on the mainly hollow shaft, make the roller rotary againsed the innerside of ring die inside, so big part ring die fixed on machine, only rollers rotary, make the wood pellet mill working more stable.

In order to keep the biofuel pellet machine long time continually no stop working, the machine equipped with automatically lubrication pump, it will inject the grease to 2 rollers and the main shaft.

The vertical ring die biofuel pellet machine mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, soft wood sawdust, rice husk, sunflower husk, peanut shell and coffe husk, or other fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks, and other biomass materials.


Mainly Parameters for biofuel pellet machine:



Model

Power

(kw)

Capacity for

wood pellets(kgs/h)

Weight of the

machine(kgs)

Dimension of the

machine (mm)
XGJ560 90+1.5+0.37+1.5 1000-1500 6100 2600x1300x2300
XGJ560P 132+1.5+0.37+1.5 1500-2000 4600 2600x1250x1600
XGJ850 220+3+0.37(0.55)+2.2 2000-3000 14500 3300x1400x3100
XGJ850P 220+3+0.37(0.55)+2.2 2500-3500 9600 2600x1600x1950



 Photos of biofuel pellet machine:



1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 01.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 11.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 2
1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 3

132KW 2T/h automatically lubrication hard wood biomass energy wood pellet press machine



Sucessful Case for biofuel pellet machine:



We have installed many complete biomass fuel pellet mill line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....

1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 5

1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 6

1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 7



Customers Visiting:



Welcome you visiting our company for more deply communication about the pellet mill machine.

There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.



1.5-2 Ton / Hour Ring Die Biofuel Pellet Machine For Re-Using Wood Sawdust 8
