Product Details:
|
| Type: | Flat Die Pellet Machine | Name: | Wood Pellet Extruder |
|---|---|---|---|
| Power: | 30KW | Motor: | 380V, 50HZ, 3Phase |
| Capacity: | 400KG/h | Size Of Die: | 350mm |
| Number Of Roller: | 2 Roller | Pellets Density: | 1.0-1.4 G/cm3 |
| High Light: | 400kg/H Wood Pellet Extruder,30kw Wood Pellet Extruder,400kg/H wood pellet equipment |
||
400kg/H 30kw Motor Wood Pellet Extruder For Fuel Pellet Making
Introduction of wood pellet extruder
The flat die wood pellet extruder is good for testing using, It is good at press different kind of wood sawust, grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets.
SKJ flat die wood sawdust pellet extruder using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally.
Flat die wood sawdust pellet extruder machine motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using,
Mainly Parameter of wood pellet extruder :
| Model |
Power (kw) |
Capacity for pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |
| SKJ300 | 22 | 200-300 | 700 | 1280×560×1220 |
| SKJ350 | 30 | 300-400 | 800 | 1300×620×1300 |
| SKJ450 | 45 | 500-700 | 1500 | 1620×700×1600 |
| SKJ550 | 55 | 700-900 | 1600 | 1700×700×1600 |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |

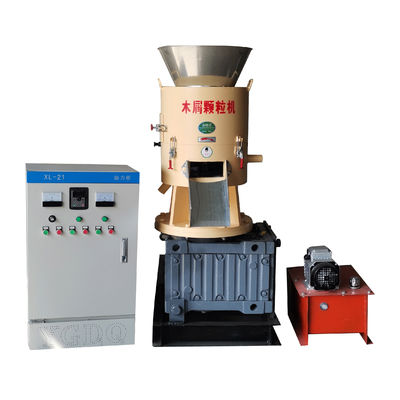

Photos of the wood sawdust pellet extruder:
The spare parts for the wood pellets extruder:
