60mm Tree Branch Chips Wood Stump Chipper GX1400 With Chain Feeding Conveyor
Product Details:
Place of Origin: | China |
Brand Name: | DE XI |
Certification: | CE ISO |
Model Number: | GX1400 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | bulk into container |
Delivery Time: | 25-35working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Name: | Stump Chipper Crusher | Spindle Speed:: | 950 R / Minutes |
---|---|---|---|
Cutter Diameter: | 800mm -1300 MM | Feeder Size: | 1400mm -800 MM |
Main Power: | 200 KW- 250KW | Capacity: | 20-30 Ton / H |
Chips Size: | 30mm - 60 Mm | Weight Of Machine: | 25000-27000 Kg |
Size Of Machine: | 12000 X 3000 X 3600mm | ||
High Light: | 60mm Chips Wood Stump Chipper,GX1400 Wood Stump Chipper,60mm tree branch crusher |
Product Description
GX1400-800 Chain Feeding Conveyor Wood Stump Chipper Crusher
Introduction of wood stump chipper crusher
The GX1400 type stump chipper crusher with big drum rotor, it is widldly using for crushing big size wood log, wood waste, wood pallet wood waste root and other waste materials, it mainly for power plant using, crushing the waste materials as fuel.
It also good for big biomass pellet plant, prepare the raw materials for pellet making.

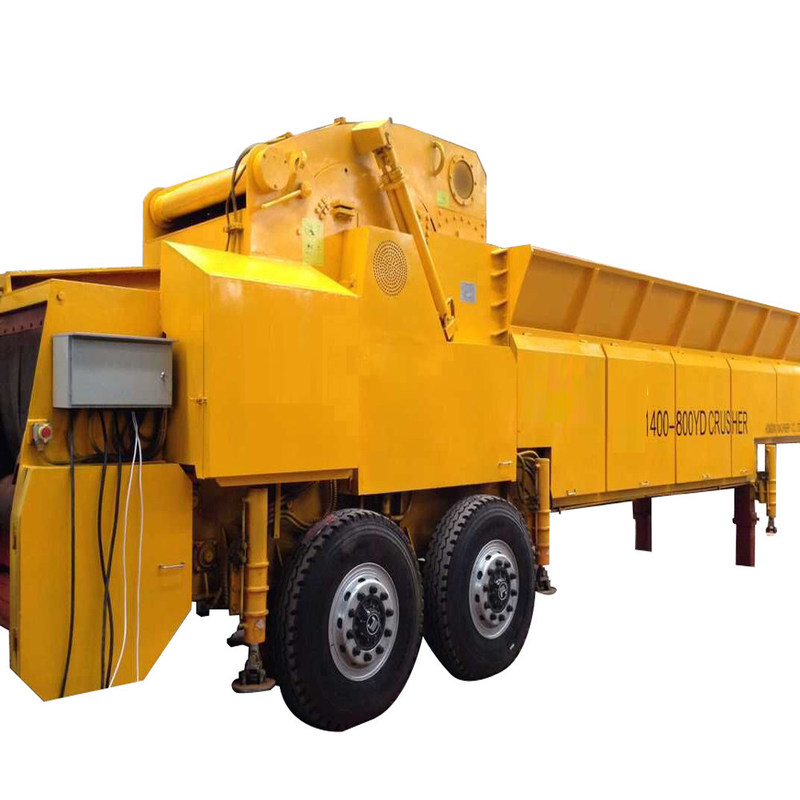

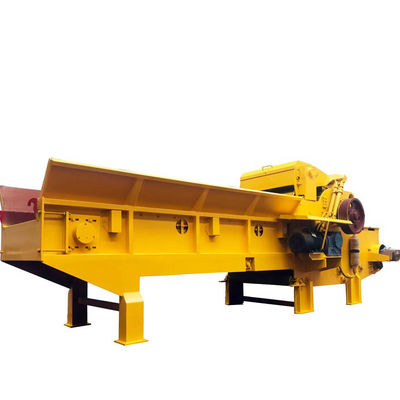

Phtos of wood stump chipper crusher
The GX1400 type wood stump chipper crusher can be installed on the concrete or steel structural support foundation, and fixed by land bolt.
Technical Parameter of wood stump chipper crusher
Model | GX1400-500 | GX1400-700 | GX1400-800 | |
Rotor diameter (mm) | 800 | 960 | 1050 | |
Cutter quantity (piece) | 2 or 24 | 2 or 24 | 2 or 24 | |
Power (KW) |
Feeding: | 11+7.5 | 11+7.5 | 11+7.5 |
Main: | 200 | 200 | 200 | |
Discharge: | 11+4 | 11+5.5 | 11+5.5 | |
Hydraulic: | 3 | 4 | 4 | |
Input conveyor (mm) | 4 | 6 | 6 | |
Output conveyor (mm) | 10 | 10 | 10 | |
Input size (mm) | 1400-500 | 1400-700 | 1400-800 | |
Capacity (T/H) | 15-20 | 20-25 | 20-30 |
Delivery pictures of wood stump chipper crusher
