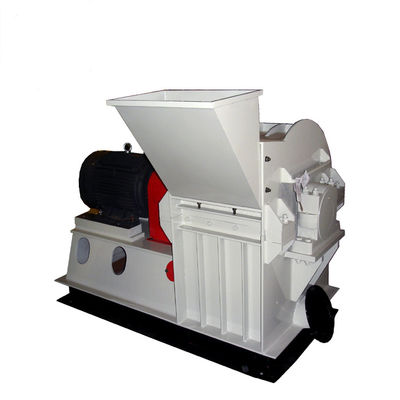

SG65 Hammer Mill Machine

SG65 Hammer Mill Machine
SG65 Hammer Mill Machine SG65 Hammer Mill Machine SG65 Hammer Mill Machine

Large Image :  SG65 Hammer Mill Machine

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: SG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box, Steel frame box, bulk into container
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/ month

SG65 Hammer Mill Machine

Type: Straw Hammer Mill Power(w): 11kw-75kw
Color: Yellow Or Gray Warranty: 2 Years
After-sales Service Provided: Engineers Available For Guide Installation Qty Of Hammer(pie): 12pcs -72 Pcs
High Light:

SG65 Hammer Mill Machine


0.3KGS/H hammer mill crusher


0.3KGS/H Hammer Mill Machine

SG65 Multi-Functional High Efficiency Corn Straw Hammer Mill


Product Introduction straw hammer mill:


The SG type straw hammer mill is the most ideal grinding equipment for all kinds of animal feed, wood chips, wood

shavings, grass, straw, stalk, rice husk, palm fiber and so on. when crush plastic, PVC, rubber e.c.t, it

adopts water cooling structure, avoiding the damage to spare parts due to long time working friction.

Except biomass, it also can crush animal feed materials such as soybean, maize, cereal and fertilizer

materials from animal manure, chemical e.c.t which is mainly used in wood factory, feed factory,

organic fertilizer factory, and so on.


we will install fit hole screener sieve at the straw hammer mill bottom according to materials humidity.

If raw materials were high humidity, then we will install 10-30mm hole screener even no screener at

the bottom, if dry, then will install 2-4mm hole screener, which means will outlet smaller than 2mm fine



The SG straw hammer mill mainly spare parts such as hammers and screener are made by our CNC systems,

through high technical heat treatment, standing out from other suppliers is that we could ensure the

parts high precision and good quality.


SG straw hammer mill works connect with air fan and cyclone, air lock, dust filter, after crushed, the powder

will outlet from cyclone bottom, which is very environmental protection and easy to collect dust.


Mainly Parameters of  straw hammer mill :





Capacity (kgs/h)

Hammer Qty






SG40 7.5 0.1-0.3 12 0.27 1310×800×1070
SG50 11/15 0.2-0.4 16 0.45 1380×800×1010
SG65X27 22 0.5-0.8 24 0.95 1900×800×1100
SG65X55 37-55 1-2 48 1.5 2100×1000×1100
SG65X75 55-75 2-3 72 2.0 2100×1700×1500


Photos of wood hammer mill:


SG65 Hammer Mill Machine 0SG65 Hammer Mill Machine 1SG65 Hammer Mill Machine 2SG65 Hammer Mill Machine 3
