|Condition:||New||Type:||Rotary Drum Dryer Machine|
|Material:||Carbon Steel||Fuel:||Wood Blocks|
|Voltage:||Can Be Customized||Power(kw):||15-160|
|Warranty:||1 Year||Application:||Sawdust Pellet Making|
|Installation:||Engineer Guidance Installation||Raw Material:||Sawdust|
18.5KW Drum Rotary Dryer,
11KW Drum Rotary Dryer,
18.5KW industrial drum dryer

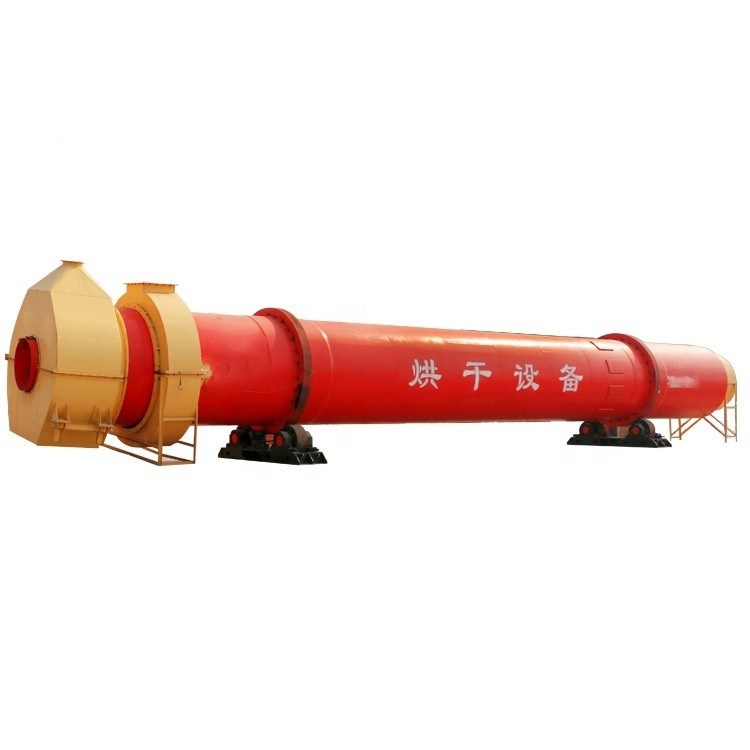

China hot sale Industrial Rotary Drum Dryer Machine for drying Wood Chips/ Sawdust / Mineral Powder
Product Introduction of Rotary Drum Dryer Machine:

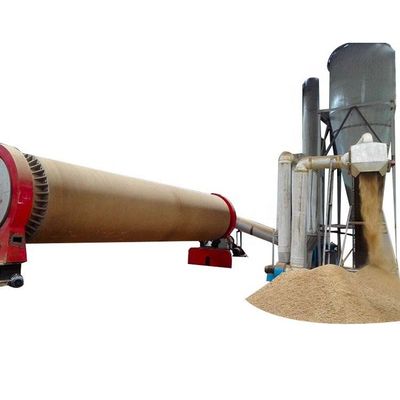

GHG industrial rotary drum dryer machine with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder. GHG rotary drum dryer machine is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chips, straws, grass, etc
The drying body of rotary drum dryer machine is composed of cylinder body, ring gear and rolling ring. The rotary drum dryer machine drying body is on the tug rolling device and block rolling device supported by front and back rolling ring. It can control axial direction traversing of drying body by adjusting tug rolling device and block rolling device. The driving device drives drying body rotating through the ring gear. Electric motor (frequent) as the power can achieve stepless speed adjusting and meet the demand of different rotating speed.
Therotary drum dryer machine driving has two forms, left driving and right driving. Method of distinction: look at from the direction of inlet, the rotary drum dryer machine driving device that is at the left side of drying body is left driving; the driving device that is at the right side of drying body is right driving.
Main Parameters of rotary drum dryer machine:
