Product Details:
|
| Name: | Biomass Pellet Press Machine | Power: | 30KW |
|---|---|---|---|
| Size Of Die: | 350MM | Number Of Roller: | 2 Rollers |
| Capacity: | 300-400KG | Pellets Size: | 6mm |
| High Light: | Biomass Pellet Press Machine 30KW,Biomass Pellet Press Machine 400KG,Biomass Pellet Press Machine 300KG |
||
CE Certificate Biomass Pellet Press Machine 30KW 300-400KG Capacity
Introduction of biomass pellet press
The flat die biomass pellet press is good for testing using, It is good at press different kind of wood sawust, grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets.
SKJ flat die biomass pellet press using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally.
Flat die biomass pellet press machine motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using,
Mainly Parameter of flat die biomass pellet press:
| Model |
Power (kw) |
Capacity for pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |
| SKJ300 | 22 | 200-300 | 700 | 1280×560×1220 |
| SKJ350 | 30 | 300-400 | 800 | 1300×620×1300 |
| SKJ450 | 45 | 500-700 | 1500 | 1620×700×1600 |
| SKJ550 | 55 | 700-900 | 1600 | 1700×700×1600 |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |

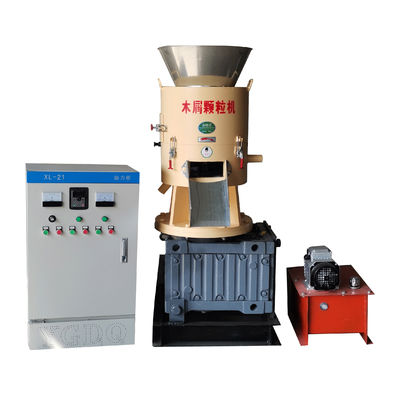

Photos of the flat die biomass pellet press:
The spare parts for the Biomass fuel pellet machine:
