Product Details:
|
| Name: | Mobile Wood Chipper Machine | Application: | Chipping Wood Materials |
|---|---|---|---|
| Power Type: | Diesel Engines Drive | Power: | 22 HP Engine |
| Output Capacity: | 7-11 CBM / Hour | Color: | Red Or Blue/ OEM |
| Condition: | Finished Products | Chips Size: | 1-3 Cm |
| High Light: | 6 Inch Wood Chipper Machine,DWC-22 Wood Chipper Machine,22HP small wood chipper |
||
DWC-22 Indursty Using Wood Cutting 6 Inch Diesel Engine Mobile Chipper Machine
Product Introduction of mobile chipper machine:
DWC series disc type mobile chipper machine is used to cutting the waste wood or make wood chips, wood pieces which specially designed for round logs, square blocks, tree branches, wood staff and so on.
The efficiency of disc mobile chipper machine is much higher than the ordinary type wood chipper. Operation easy, maintenance ratio low and more simple, lifetime long and the noise is low.
This small portable disc mobile chipper machine power supply by the high efficiency diesel engine, and this chipping machine with 1 pair of wheels, flexible and Convenient to move to anywhere.
Based on customer’s demand we can adding the hydraulic feeding rollers in front of the disc type mobile chipper machine, which can help operator easily feeding the log wood.
The DWC type diesel engine mobile chipper machine would be the best choice for different factories and families which deal with wood scraps.
Mainly Parameter of the mobile chipper machine:
| Model | DWC-18 | DWC-22 | DWC-40 |
| Engine | 18HP Changechai diesel engine | 22HP Changechai diesel engine | 40HP Laidong diesel engine |
| Chipper capacity | max. 150mm | max. 150mm | max. 200mm |
| Feeding system | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic |
| Flywheel diameter | 640mm | 640mm | 640mm |
| Blades number | 1 stationary blade, 2 rotary blades | ||
| Flywheel weight | 85kg | 85kg | 85kg |
| Feed Hopper Inner Opening | 200x220mm | 200x220mm | 200x220mm |
| Rated RPM | 1080 | 1080 | 1280 |
| Weight | 650kg | 690kg | 800kg |
| Working efficiency | 7-11cbm/h | 7-11cbm/h | 9-13cbm/h |

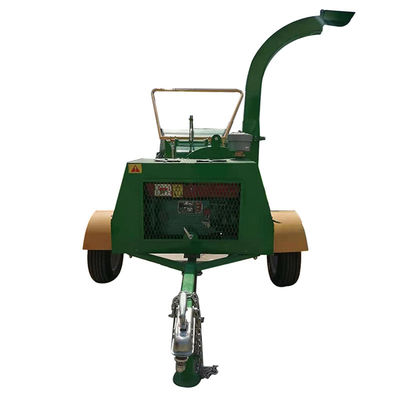

Product Photos of mobile chipper machine:
