SKJ3-550 Cow Dung Fertilizer Pellet Machine 2000kg/H Organic Pellet Press Machine
|Place of Origin:||SHANDONG, CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden box, Steel frame box, bulk into container|
|Delivery Time:||10-20 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50 sets/ month|
|Name:||Organic Pellet Press Machine||Power:||55-75KW|
|Capacity:||1500-2000 Kg /h Capacity||Suitable Materials:||Cow Manure|
|Type:||Farm Using Equipment||Die:||550mm In Diamter|
|Roller:||3 Big Rollers Fixed||Pellets:||2-6 Mm|
|Color:||Gray , Yellow, Green|
SKJ3-550 Fertilizer Pellet Machine,
SKJ3-550 Pellet Press Machine,
2000kg/H Organic Pellet Press Machine
Chicken Dung Pig Dung Cow Dung Organic Pellet Press Machine
Introduction of organic pellet press machine
The SKJ organic pellet press machine good for press different kind of materials into columnar shape pellets, it is mainly suing for making grass type animal feed pellet making, organic fertilizer pellet making, and small capacity wood pellets making.
The organic pellet press machine working principle, the motor power is transmitted to the main shaft by the transmission mechanism, and the main shaft drives the die to rotate; the material rotates with the die and is forced to be squeezed between the die and the roller, under the above action mechanism, the livestock manure material is continuously pressed into the holes of the flat die, and finally pressed from the die hole to form columnar type pellets, which are finally rolled out from the discharging port through the material discharging device.
SKJ type organic pellet press machine working, the feeding materials should be after fermentation. raw materials moisture less than 30%.
The compost organic pellet press machine can make different diameter size of pellets from diameter 2mm to 10mm, by change the machine inside flat die, but other parts no need change. The output livestock manure fertilizer pellets with columnar shape, and if you want to making ball like pellets, we can provide the ball shaper machine to connecting with the flat die pellet machine. Which can process the columnar type pellets into small ball type pellets.
The flat die compost organic pellet press machine can press different kind of animal waste into organic fertilizer, such as chicken dung, cow dung, sheep dung, and other animal waste or other wsate from livestock farm... The output pellets is good fertilizer for crop planting using.
Mainly Parameter of compost organic pellet press machine
|SKJ2-250||300-500||15||4-6||0.5||1400x 600x 1000|
|SKJ2-280||400-700||22||4-6||0.65||1760x 670x 1600|
|SKJ2-300||500-800||30||4-8||0.76||1860x 670x 1600|
|SKJ2-350||600-1000||37||4-8||1.2||1800x 800x 1700|
|SKJ2-450||800-1200||45||4-8||1.8||1800x 850x 1750|
|SKJ3-350||600-1200||37||4-8||2.2||1900x 850x 1750|
|SKJ3-450||800-1500||55||4-8||4.3||2300x 1100x 1900|
|SKJ3-550||1000-2000||75||4-8||5.5||2350x 1100x 2050|

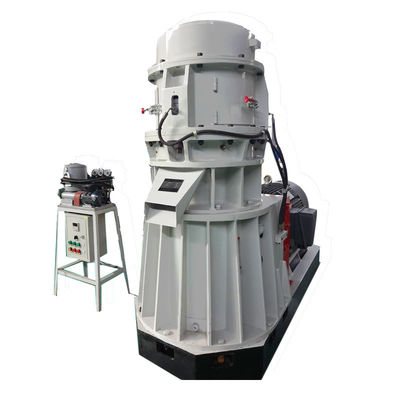

Photos of the organic pellet press machine:
The photos of organic compost pellet press machine:
