Product Details:
|
| Rotate Blade: | 2 Pcs | Fixed Blade: | 1 Pcs |
|---|---|---|---|
| Feeder Size: | 230*500mm | Main Power: | 55kw |
| Capacity: | 5-8t/h | Chips Size: | 30mm |
| Weight: | 4070kg | Size: | 1800×1900×1210mm |
| High Light: | 55KW Industrial Drum Wood Chipper,GX216 Wood Chips Making Machine,30mm Wood Chips Making Machine |
||

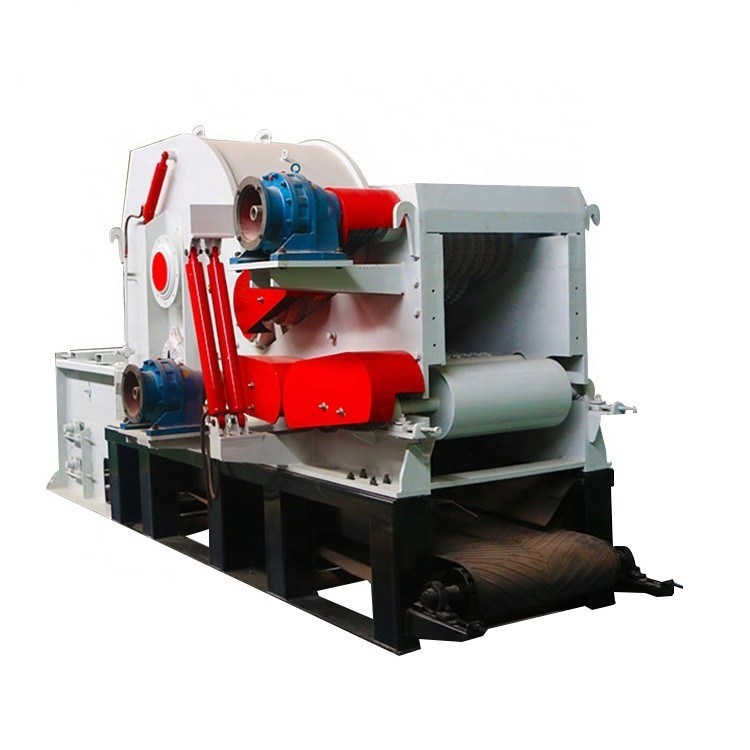

GX216 5-8T/H 55KW China Hot Sale Industrial Drum Wood Chipper
Main Characteristics of drum wood chipper
GX series Drum Wood Chipper is one kind of special equipment for producing wood chips, widely used in the raw material preparing process in the factories of flakeboard (shaving board/particle board), fiberboard, papermaking and wood chips making plant. Small drum type wood chipper is the best equipment for factory’s laboratory preparing material.
Raw material for Drum type wood chipper cutting is mainly small diameter wood, lumbering remains (such as branches, twigs, tress etc) and woodworking remains (such as slab, plank, log core, waste veneer etc). It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo etc).
Operation easy, maintenance simple, life long and the noise is low. This wood chipper would be the best choice for factories and families which deal with wood scraps.
Main Structure of drum wood chipper
Drum wood chipper is composed of base, blade roller, upper and nether (below) feeding organization, feeding equipment, hydraulic press cushion system and electric control system.
Installation of drum wood chipper
Wood chipper can be installed on the concrete or steel structural support foundation, and fixed by land bolt.
Technical Parameter of wood chipper
| Model | PX15-80 | PX45-190 | GX215 | GX216 | GX218 | GX2113 |
| Rotate blade/Fixed blade(pcs) | 3/3 | 3/3 | 2/1 | 2/1 | 2/1 | 3/1 |
| Feeder size (mm) | 150*150 | 180*180 | 160*400 | 230*500 | 300*680 | 450*700 |
| Power ( kw) | 30 | 45 | 45+2.2+3+1.5 | 55+3+1.5 | 110+5.5+1.5 | 220+7.5*2+1.5 |
| Capacity (T/h) | 0.5-1 | 1-2 | 3-4 | 5-8 | 8-15 | 15-25 |
| Chips size(mm) | 10-30 | 10-30 | 30 | 30 | 30 | 30 |
| Weight (kg) | 2990 | 4070 | 7000 | 11840 | ||
| Dimension(mm) | 1470×1550×970 | 1800×1900×1210 | 2200×2150×1500 | 3670×2517×2050 |
Delivery pictures of Drum wood chipper
Customers visiting for Drum wood chipper
