Product Details:
|
Type: | Vertical Ring Die | Power: | 220 + 2.2kw +0.37kw |
---|---|---|---|
Ring Die Diamter: | 850mm Inner Diamter | Number Of Roller: | 3pcs Rollers |
Machine Gurantee: | For 3 Years Gearbox | Voltage: | 380 V (or Customize) |
After-sales Service Provided: | Engineers Installating Overseas | Condition: | New Equipment |
Application: | Pellet Production | Color: | On Customer's Demand |
Pellet Size: | 6mm, Or 8mm | ||
Highlight: | DEXI vertical Ring Die Pellet Mill,6mm Wood Pellet Machine,850mm Vertical Ring Die Pellet Mill |
After long time working on the market and feedback from the market, we have developed this pellet mill press machine, make the wood pellet press machine gearbox more bigger and strongger, machine main shaft direct connecting with gearbox output shaft, this way machhine working more stable, and machine rollers and gears totally automatically lubricated.
The wood pellet mill press machineapplicable for difficult molding materials with low adhesion rate,for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste from timber factor or from furniture factory.
Mainly Parameters for pellet mill press machine:
Model |
Power (kw) |
Capacity for wood pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |

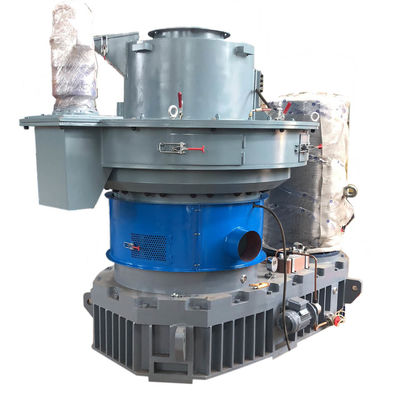

Photos of pellet mill press machine:
Sucessful Case for the pellet mill press machine:
We have installed many complete pellet production line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the machines.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about us.
