1 Ton/H Drum Rotary Dryer GHG 1.8*18 Rotary Wood Chip Dryer

1 Ton/H Drum Rotary Dryer GHG 1.8*18 Rotary Wood Chip Dryer

Product Details:

Place of Origin: SHANDONG, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: GHG

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box, Steel frame box, bulk into container
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/ month
Get Best Price Contact Now

Detail Information

Condition: New Type: Drum Drying Equipment
Material: Carbon Steel Fuel: Waste Wood
High Light:

1 Ton/ H Drum Rotary Dryer

,

GHG Rotary Wood Chip Dryer

,

1.8*18 Rotary Wood Chip Dryer

Product Description

Industrial Using Wood Chips/ Sawdust / Mineral Powder Drum Rotary Drying Machine



Product Introduction:



GHG Drum rotary dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder. GHG dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chips, straws, grass, etc



The drying body is composed of cylinder body, ring gear and rolling ring. The drying body is on the tug rolling device and block rolling device supported by front and back rolling ring. It can control axial direction traversing of drying body by adjusting tug rolling device and block rolling device. The driving device drives drying body rotating through the ring gear. Electric motor (frequent) as the power can achieve stepless speed adjusting and meet the demand of different rotating speed.



The driving has two forms, left driving and right driving. Method of distinction: look at from the direction of inlet, the driving device that is at the left side of drying body is left driving; the driving device that is at the right side of drying body is right driving.



Main Parameters:





Model
Power(kw)
Fan power(kw)
GHGΦ1.2×12×1
5.5
15
GHGΦ1.4×12×1
7.5
22
GHGΦ1.5×12×1
7.5
30
GHGΦ1.5×15×1
11
30
GHGΦ1.6×15×1
11
37
GHGΦ1.6×18×1
11
37
GHGΦ1.8×12×1
11
30
GHGΦ1.8×15×1
15
30
GHGΦ1.8×18×1
15
45
GHGΦ1.8×20×1
15
45
GHGΦ1.8×24×1
18.5
45
GHGΦ2.0×18×1
15
45
GHGΦ2.0×20×1
18.5
45
GHGΦ2.0×24×1
18.5
45
GHGΦ2.2×20×1
18.5
75
GHGΦ2.2×24×1
18.5
75
GHGΦ2.5×20×1
22
75
GHGΦ2.5×24×1
22
75
GHGΦ2.8×20×1
22
75
GHGΦ2.8×24×1
22
75
GHGΦ2.8×28×1
30
75
GHGΦ3.0×24×1
30
132
GHGΦ3.0×28×1
30
132
GHGΦ3.5×20×1
37
160
GHGΦ3.5×24×1
37
160

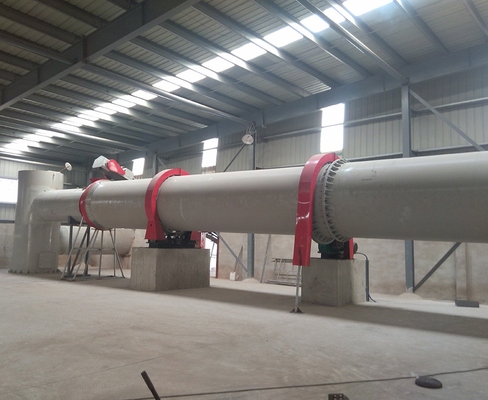

Product photos:

1 Ton/H Drum Rotary Dryer GHG 1.8*18 Rotary Wood Chip Dryer 01 Ton/H Drum Rotary Dryer GHG 1.8*18 Rotary Wood Chip Dryer 1

1 Ton/H Drum Rotary Dryer GHG 1.8*18 Rotary Wood Chip Dryer 21 Ton/H Drum Rotary Dryer GHG 1.8*18 Rotary Wood Chip Dryer 3
