30KW 400KG/Hour Wood Pelletizer Flat Die Type For Fuel Pellets Making
Product Details:
| Place of Origin: | Shandong， China |
| Brand Name: | DEXI |
| Certification: | CE ISO |
| Model Number: | SKJ250/300/350/450/550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD5800/set |
| Packaging Details: | Ply wood box, Steel frame box, bulk into container |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 set / Month |
|
Detail Information |
|||
| Name: | Wood Pelletizer Machine | Power: | 30KW |
|---|---|---|---|
| Type: | Flat Die | Useage: | Fuel Pellet Making |
| Capacity: | 400KG/HOUR | Pellets Size: | 6mm 8mm |
| Pellets Density: | 1.0-1.4 | Size Of Die: | 350mm |
| High Light: | 400KG/Hour Wood Pelletizer,30KW Wood Pelletizer,400KG/Hour flat die pellet mill |
||
Product Description
30KW 400KG/Hour Wood Pelletizer Flat Die Type For Fuel Pellets Making
Introduction of wood pelletizer
The flat die wood pelletizer is good for testing using, It is good at press different kind of wood sawust, grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets.
SKJ flat die wood pelletizer using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally.
Flat die wood pelletizer machine motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using,
Mainly Parameter of wood pelletizer:
| Model |
Power (kw) |
Capacity for pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |
| SKJ300 | 22 | 200-300 | 700 | 1280×560×1220 |
| SKJ350 | 30 | 300-400 | 800 | 1300×620×1300 |
| SKJ450 | 45 | 500-700 | 1500 | 1620×700×1600 |
| SKJ550 | 55 | 700-900 | 1600 | 1700×700×1600 |
| SKJ250 | 15 | 100-200 | 400 | 1120×440×1060 |

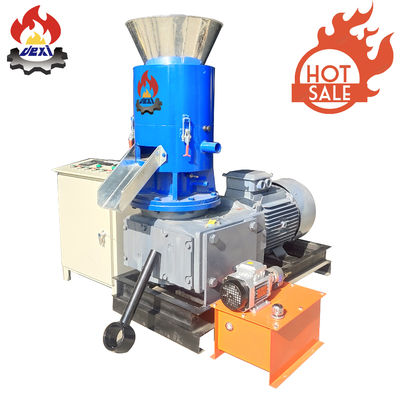

Photos of the wood pelletizer:
The spare parts for the Biomass fuel pellet machine:
