75kw Hammer Mill Grinder

75kw Hammer Mill Grinder
75kw Hammer Mill Grinder 75kw Hammer Mill Grinder 75kw Hammer Mill Grinder

Large Image :  75kw Hammer Mill Grinder

Product Details:
Place of Origin: SHANDONG, CHINA
Brand Name: DEXI
Certification: CE ISO
Model Number: GXP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box, Steel frame box, bulk into container
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/ month

75kw Hammer Mill Grinder

Type: Hammer Type Wood Shredder Power(w): 75KW
Color: Based On Customer Demand Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Diameter Of Rotor(mm): 650
Qty Of Hammer(pie): 72 Output: 2-3t/h
High Light:

3T/H Hammer Mill Grinder


75kw Hammer Mill Grinder


3T/H wood hammer mill

2-3T/H 75kw manufactured in China GXP wood waste wood chips crusher wood grinder wood shredder


Product Introduction of wood shredder:


The motor and rotor of this series wood shredder installed on the same base. They are directly connected by coupling. The rotor has been checked by dynamic balance test can rotate in both of forward backward direction.
There are symmetrical operation door and safety interlock in both side. The operation doors are helpful to renewal thieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment. There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable. Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
The GXP series wood shredder has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.


Mainly Parameters of wood shredder:


Model GXP65*27 GXP65*55 GXP65*75 GXP65*100 GXP80*100
Diameter of rotor(mm) 650 650 650 650 800
Width of studio(mm) 275 550 750 1000 1000
Rotate speed (r/min) 2950 2950 2950 1480 1480
Spec of screener(mm) 1340×270 1340×400 1340×600 2730×600 2730×600
Spec of hammer(mm) 180×50×5 180×50×5 180×50×5 180×50×5 180×50×5
Qty of hammer(pie) 24 48 72 96 96
Related power(kw) 22 55 75 90/110 132/160
Output(t/h) 0.5-1 1-2 2-3 3-4/3-5 4-6/5-8

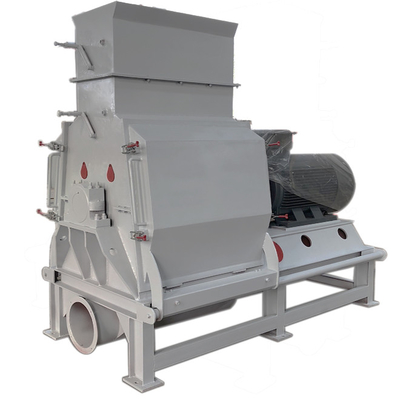

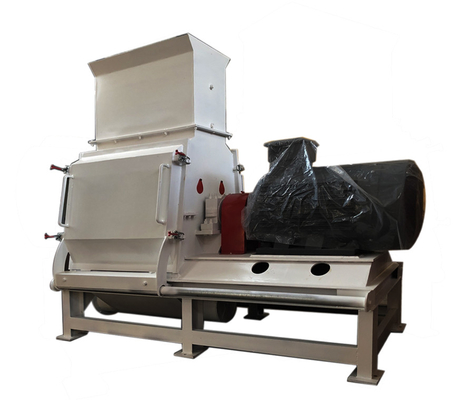

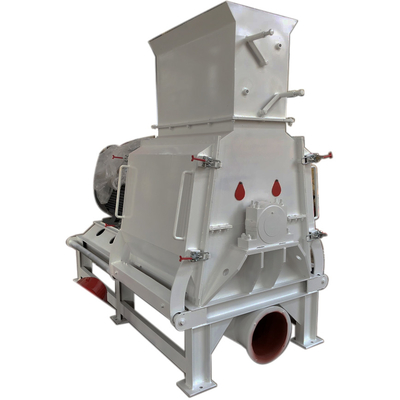

Photos of wood shredder:


75kw Hammer Mill Grinder 0





























75kw Hammer Mill Grinder 1































75kw Hammer Mill Grinder 275kw Hammer Mill Grinder 3
