2T/H GXP Wood Waste Grain Hammer Mill Machine 55KW 650mm Rotor
Product Details:
| Place of Origin: | SHANDONG, CHINA |
| Brand Name: | DEXI |
| Certification: | CE ISO |
| Model Number: | GXP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden box, Steel frame box, bulk into container |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/ month |
|
Detail Information |
|||
| Type: | GXP High Efficiency | Power(w): | 55KW |
|---|---|---|---|
| Color: | Based On Customer Demand | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Diameter Of Rotor(mm): | 650 |
| Qty Of Hammer(pie): | 48 | Output: | 1-2t/h |
| High Light: | 2T/H Hammer Mill Machine,GXP grain hammer mill,GXP Wood Waste Hammer Mill Machine |
||
Product Description
1-2T/H manufactured in China GXP wood waste wood chips crusher wood grinder
Product Introduction of wood grinder:
The motor and rotor of this series wood grinder installed on the same base. They are directly connected by coupling. The rotor has been checked by dynamic balance test can rotate in both of forward backward direction.
There are symmetrical operation door and safety interlock in both side. The operation doors are helpful to renewal thieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment. There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable. Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
The GXP series wood grinder has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.
Mainly Parameters of wood grinder:
| Model | GXP65*27 | GXP65*55 | GXP65*75 | GXP65*100 | GXP80*100 |
| Diameter of rotor(mm) | 650 | 650 | 650 | 650 | 800 |
| Width of studio(mm) | 275 | 550 | 750 | 1000 | 1000 |
| Rotate speed (r/min) | 2950 | 2950 | 2950 | 1480 | 1480 |
| Spec of screener(mm) | 1340×270 | 1340×400 | 1340×600 | 2730×600 | 2730×600 |
| Spec of hammer(mm) | 180×50×5 | 180×50×5 | 180×50×5 | 180×50×5 | 180×50×5 |
| Qty of hammer(pie) | 24 | 48 | 72 | 96 | 96 |
| Related power(kw) | 22 | 55 | 75 | 90/110 | 132/160 |
| Output(t/h) | 0.5-1 | 1-2 | 2-3 | 3-4/3-5 | 4-6/5-8 |

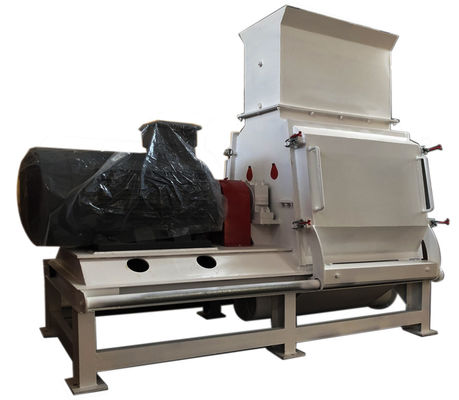

Photos of wood grinder:
