Product Details:
|
| Name: | Poultry Feed Pellet Machine | Motor: | 380V, 3PH, 50HZ , 30KW |
|---|---|---|---|
| Ooutput Capacity: | 600-1000KG/h | Suitable Materials: | Alfalfa, Eatage, Straw, Grain, Stalk |
| Type: | Flat Die Machine | Die Size: | 300 Diamter |
| Roller Qty: | 2 Rollers Alloy Type | Pellets: | 4-10mm |
| High Light: | 1000KG/H Poultry Feed Pellet Machine,SKJ2-300 Poultry Feed Pellet Machine,30KW cattle feed pellet machine |
||
SKJ2-300 Model 30kw Motor Small Flat Die Farm Using Poultry Feed Pellet Machine
Introduction of poultry feed pellet machine
The SKJ Poultry feed pellet machine is the ideal equipment for farm using, it is good for making different kind of materials into animal feed pellets, for feeding different type of livestock, such as cow, cattle, sheep, goat, goose, chicken, duck...
The flat die poultry feed pellet machine is good ideal machine for farm using or testing using, It is good at press grass, straw, ground nuts shell, corn straw and other agricultrue waste into animal feed pellets or biomass pellets. this pellet mill also can making fertilizer pellets by press the animal waste.
SKJ sereis flat die poultry feed pellet machine using the high efficiency motor to provide the power, through the cardan connecting the motor and the gearbox, inside the gearbox with differential gears, which is same as truck rear axle gear, so easy to get spare parts locally, and reduce the maintenance cost.
Flat die poultry feed pellet machine motor directly connecting with the machine gears and shaft, also overcome the loose defect of belt connecting as long time using, and stable working.
Mainly Parameter of poultry feed pellet machine
| Model |
Power (kw) |
Capacity for pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| SKJ2-120 | 3 | 70-100 | 50 | 1150×300×550 |
| SKJ2-150 | 7.5 | 100-300 | 150 | 1260×400×650 |
| SKJ2-200 | 11 | 300-500 | 200 | 1300×500×850 |
| SKJ2-250 | 15 | 400-700 | 500 | 1400×600×1000 |
| SKJ2-280 | 22 | 500-800 | 700 | 1860x650x1500 |
| SKJ2-300 | 30 | 600-1200 | 760 | 1860×670×1600 |

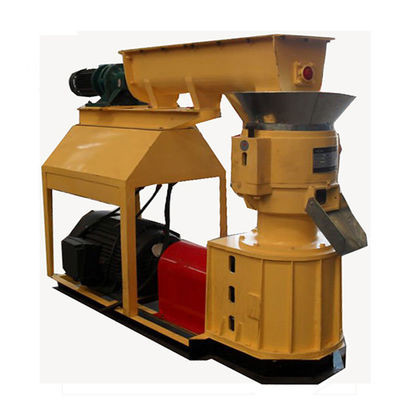

Photos of the flat die type poultry feed pellet machine:
The spare parts for the poultry feed pellet machine:
① Roller cover
② Flat die
③ Roller assemblely
